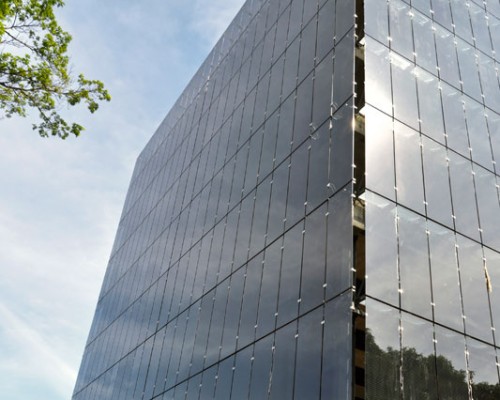

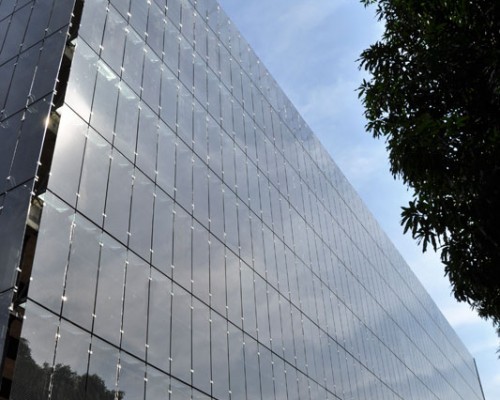

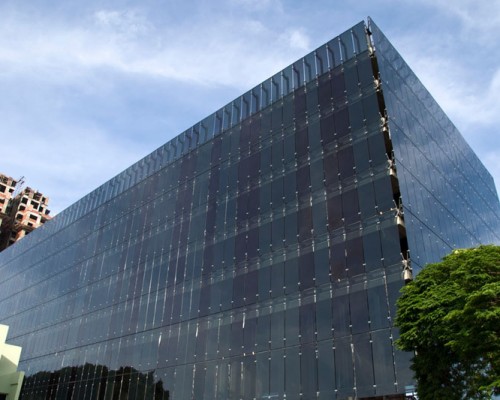

The glazing of four facades on the monumental building, HQ of the Regional Labor Court of Goiânia (Tribunal Regional do Trabalho de Gioânia) contains 6400m² of serigraphic 12mm tempered and laminated glasses.
5500m² of laminated glass composes a double glazing facade.

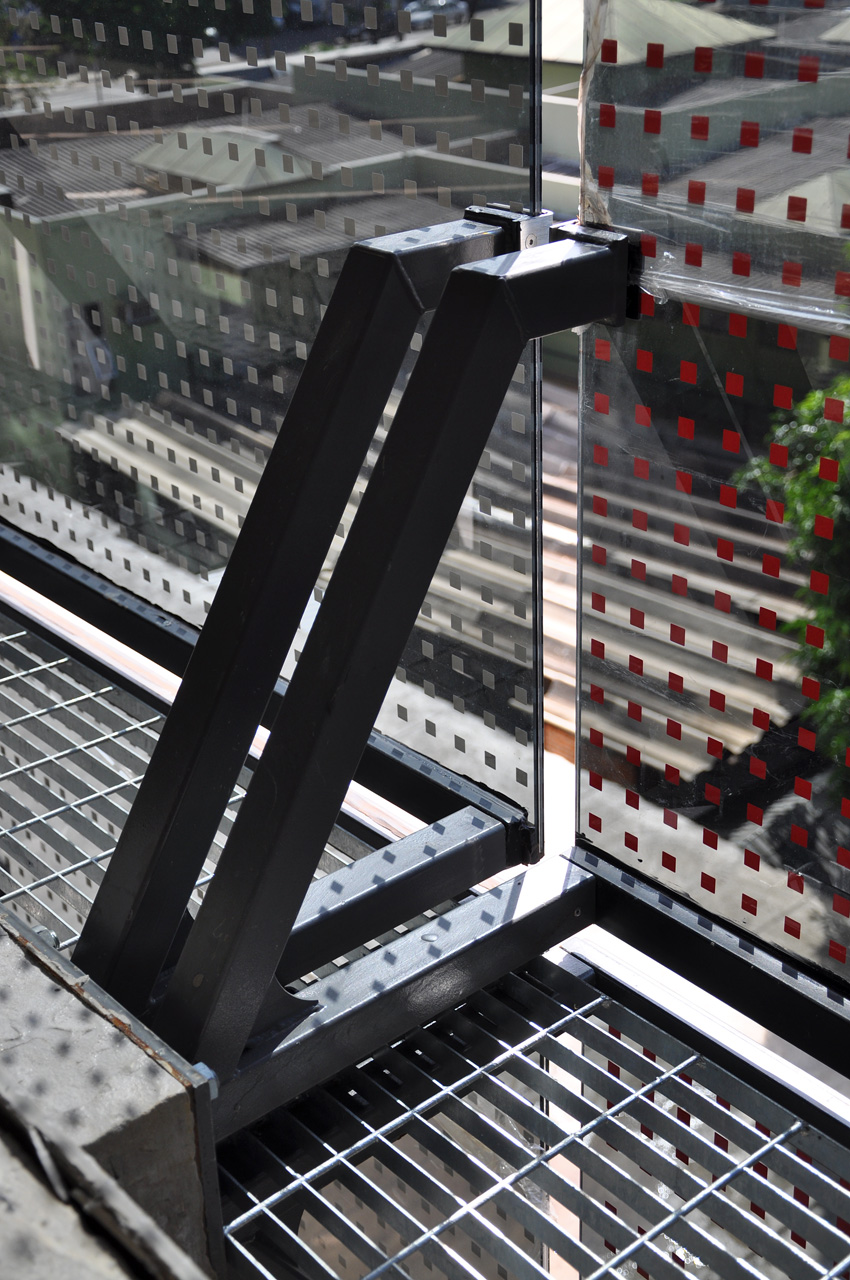

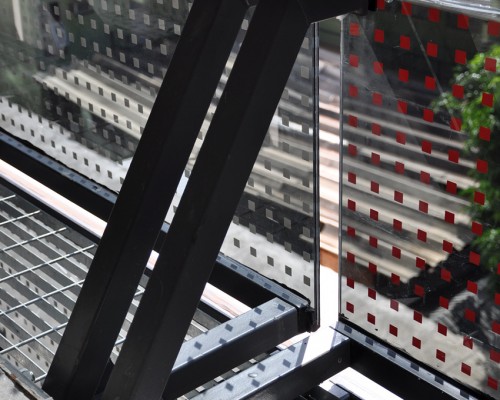

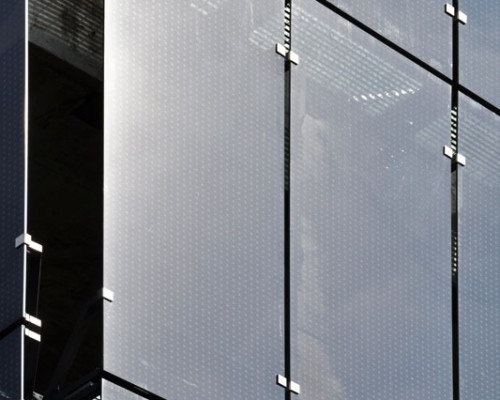

All the external layers, 3.60 x 1.30m, work structurally and are fixed with special claws that extend the glass 60cm out of the facade.
Because of a 5cm space between the glass, the glass is composed of a hydrophobic polymer Glass Shield, applied on sides of the glass.

  • Date:Nov 2009
  • Product:
  • Location:Goiânia, GO
  • Client:Construtora Gilberti - Goiânia
  • Architect:CHN Arquitetura
